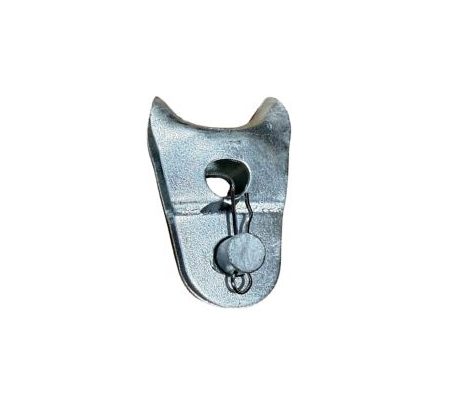

Thimble-Clevis

Frontier Part Number: 400TC1

NOTES

DUCTILE IRON: HOT DIP GALVANIZED PER ASTM A153
ULTIMATE STRENGTH RATING: 20,000LBS PER CSA C83:22
C/W COTTER & STAINLESS STEEL PIN
SLANG TERM: “PIG’S EAR”

DOWNLOAD PDF DRAWING
