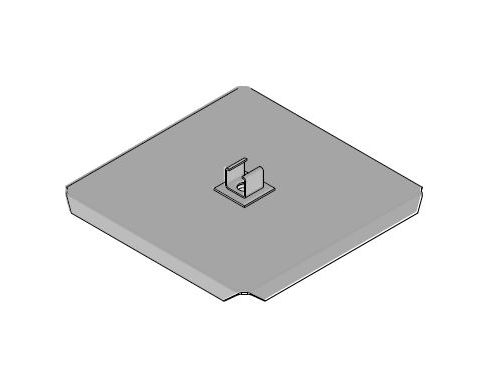

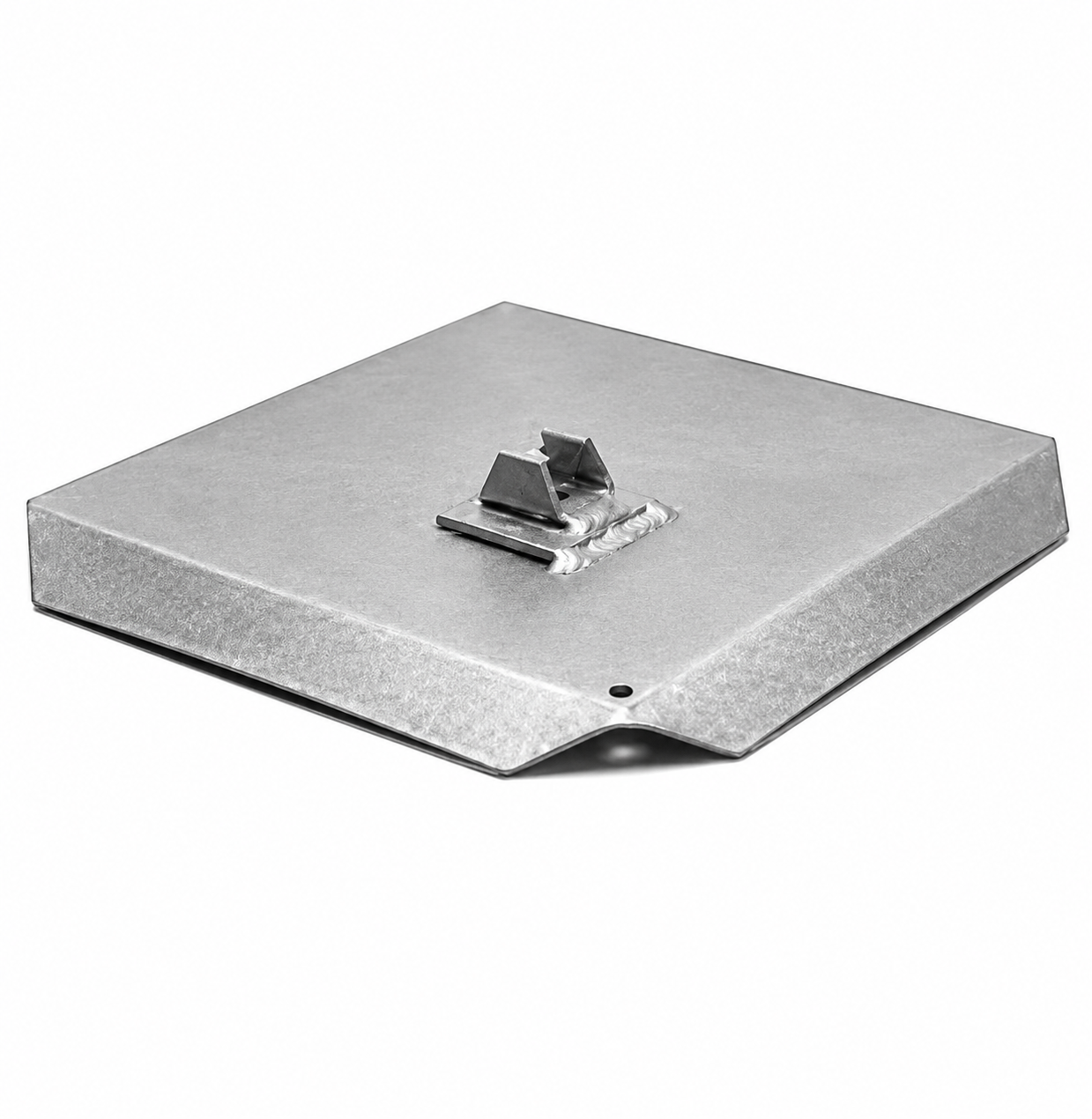

Square Anchor Plate, 20″ x 20″ Dia., for 3/4″ or 1″ Rod
Frontier Part Number: 425PAS20
NOTES:
- 400 SQ. IN. EXPANDED AREA
- HIGH-STRENGTH, LOW ALLOY STRUCTURAL STEEL PROVIDES HEAVY DUTY DURABILITY FOR GUYING
- HOT DIPPED GALVANIZED PER CSA G164 & ASTM A123
- REINFORCED FORMED CONSTRUCTION W/ CHANNEL REINFORCEMENT WELDED TO THE PLATE
- EXCELLENT SOIL BEARING AREA AND RESISTANCE TO PULL-OUT
- NUT RETAINER FOR ROD RETRIEVAL
- USED WITH 3/4″ OR 1″ ANCHOR ROD
CERTIFIED YIELD STRENGTH: 418 MPa (60.6 ksi)
CERTIFIED TENSILE STRENGTH: 538 MPa (78.0 ksi)
MATERIAL EXCEEDS CSA 350W
See Compatible Items: Anchor Rods
