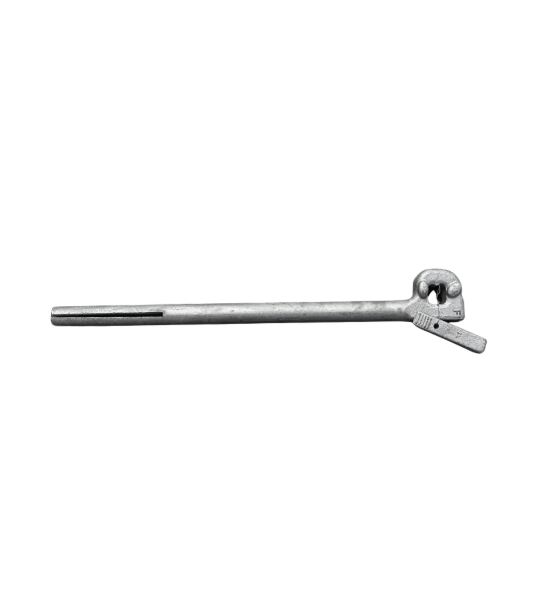

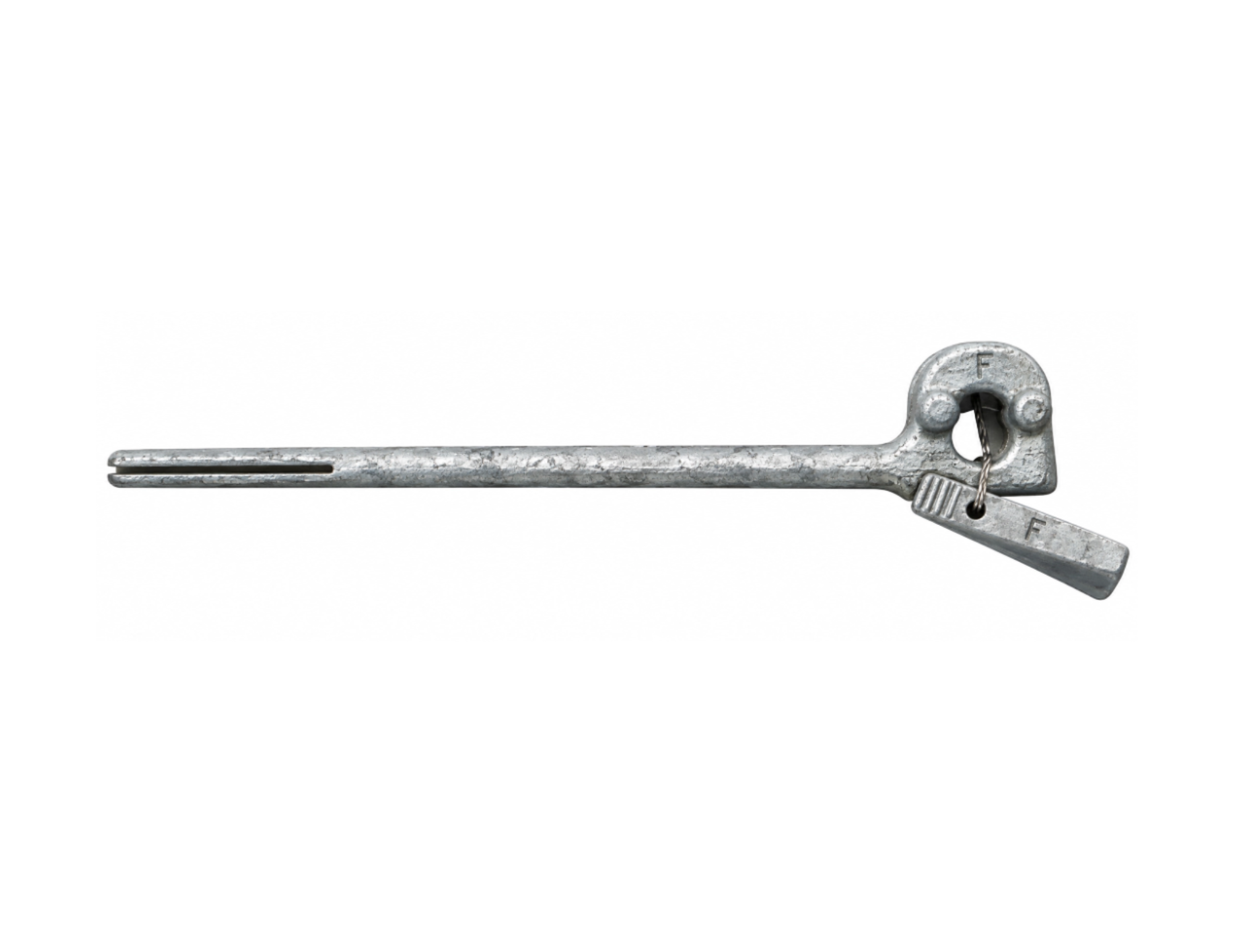

Rock Anchor w/ Wedge

Frontier Part Number: 425RAW118

NOTES:

1. 18″L OVERALL, 1″ DIAMETER ROD
2. USED TO SECURE GUY WIRE IN SOLID ROCK OR CONCRETE
3. GALVANIZED FORGED CARBON STEEL >86µm
4. ULTIMATE CANTILEVER LOAD STRENGTH: 80kN (17,984LBS)
5. C/W RIBBED WEDGE

Extra/Replacement Wedges Also Available.
