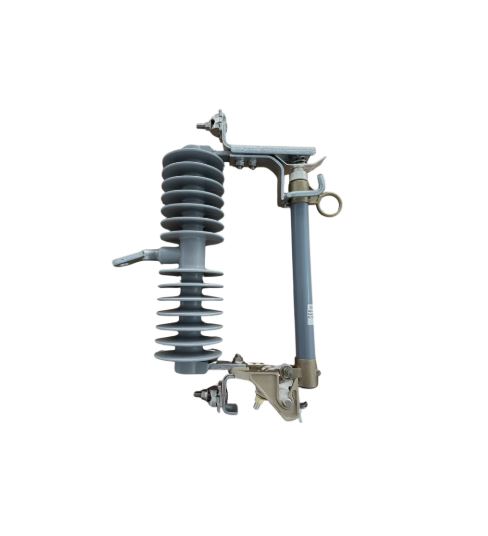

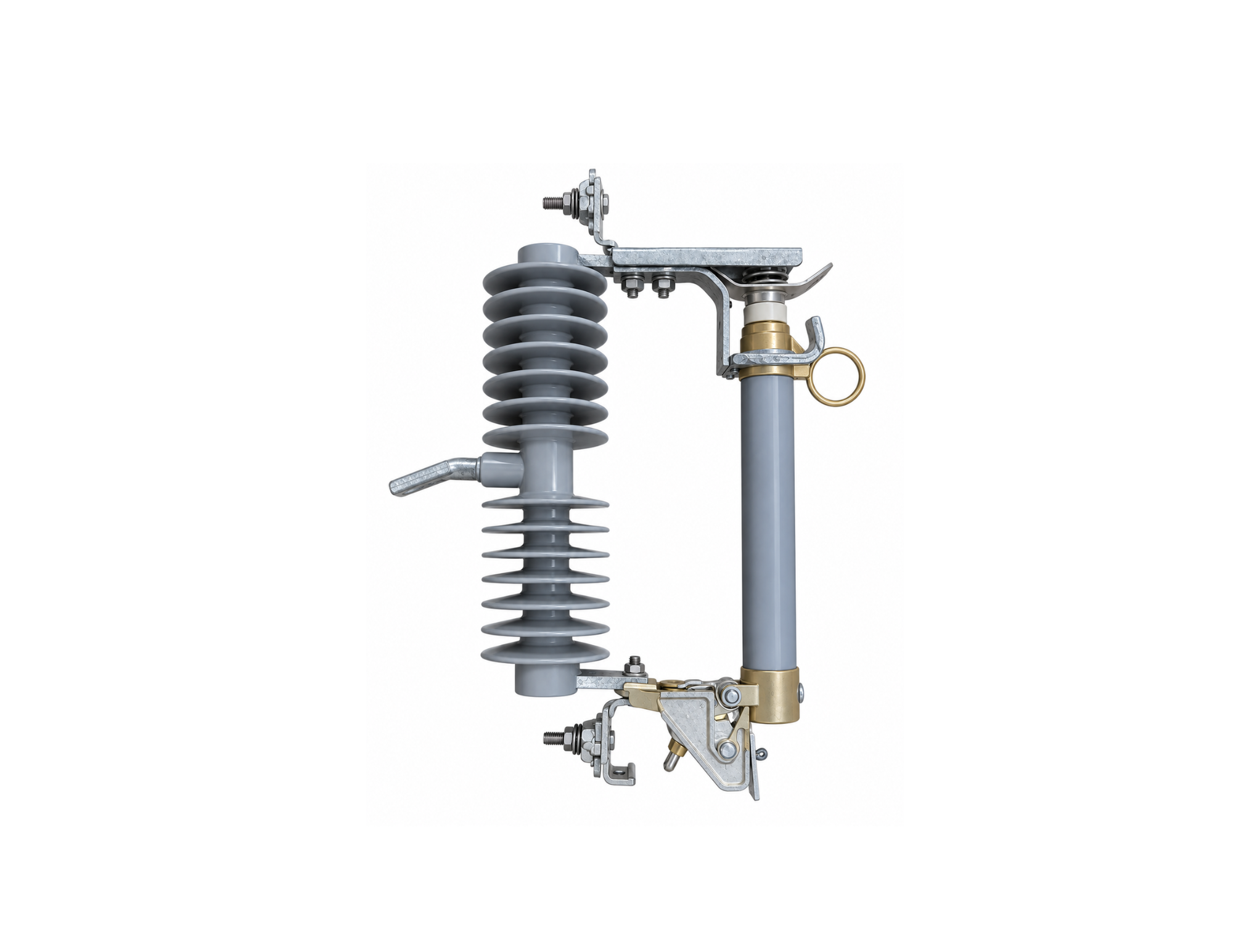

Cutout Switch, 27kV – 200AMP, 170kV BIL, 12kAIC, Silicone

Frontier Part Number: 041FCS27200

NOTES:

1. Ur: 27kV, BIL: 170kV, Rated Current: 200A, Asymmetric Breaking Current: 12kA
2. Lightning Impulse Withstand Voltage: ≥170kV
3. Power Frequency Withstand Voltage: ≥70kV (to Ground)
4. Power Frequency Withstand Voltage: ≥80kV (Breakage)
5. Creepage Distance: 660mm (25.98in.)
6. Arc-Shortening Rod
