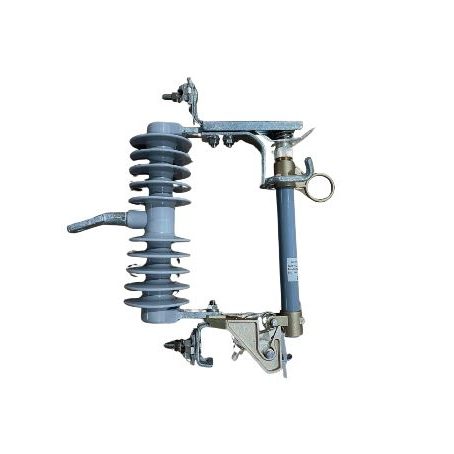

Cutout Switch, 15kV – 100AMP, 110kV BIL, 16kAIC, Silicone

Frontier Part Number: 041FCS15100

NOTES:

1. Ur: 15kV, BIL: 110kV, Rated Current: 100A, Asymmetric Breaking Current: 16kA
2. Lightning Impulse Withstand Voltage: ≥110kV
3. Power Frequency Withstand Voltage: ≥50kV (to Ground)
4. Power Frequency Withstand Voltage: ≥60kV (Breakage)
5. Creepage Distance: 390mm (15.35in.)
6. Arc-Shortening Rod
